Portchester Inframe Primed MDF (Beaded Frame)

Understated and undeniably elegant, this minimalist shaker in-frame offers a contemporary twist on a design classic - 2 coats of water based primer - ready to denib and hand paint on site.

Trade Login to order See how to order

Portchester Inframe Primed MDF (Beaded Frame)

Classic Cabinet Decors

Modern Premium Lite

Modern Premium Cabinet Decors

Premium Cabinet Decor

Please see below all the different cabinet ranges available:

Classic Modern Premium Lite Modern Premium Premium
Price Level Guidance Entry Point Upgrade Level 1 Upgrade Level 2 Upgrade Level 3
Price Uplift? No Yes Yes Yes
Construction Method Cam & Dowel Cam & Dowel Cam & Dowel Cam & Dowel
Suggested Style Of Kitchen (Although, Any Method Can Be Elected For Any Style) Classic Lay On Modern Lay On True Handleless In-Frame
Cabinet Board Origin 18mm Egger MFC 18mm Egger MFC 18mm Egger & Xylocleaf MFC 19mm Oak Veneered MDF
No. Of Finishes 30 Same As Classic 32 Unique Finishes 1
Edging 1mm ABS All Round 1mm ABS All Round 1mm ABS All Round 2mm Front Edge, 5mm On Adj. Shelves
Legs Classic Legs Wide Foot Legs Wide Foot Legs Wide Foot Legs
Shelf Pegs Nickel Plated L Shaped Shelf Pegs Recessed Nickel Plated Shelf Sleeves And Pegs Recessed Nickel Plated Shelf Sleeves And Pegs Recessed Nickel Plated Shelf Sleeves And Pegs
Hinge Finish And Hinge Plate Configuration Nickel Blum Soft Close Hinges & Cruciform Plates Onyx Black Blum Soft Close Hinges & In-Line Plates Onyx Black Blum Soft Close Hinges & In-Line Plates Nickel Blum Soft Close Cranked Hinges & Cruciform Plates
Hinge Arm & Boss Cover Caps No Yes Yes Yes
Drilled Bump Stops In Rear Of Fascia’s. No Yes Yes No
Suggested Drawer Boxes (*Surcharge Applies) Blum Antaro Legrabox* Legrabox* Oak Dovetail*
Standard Base Unit Depth / Internal Depth / Void 560mm / 481.5mm / 60mm 560mm / 505mm / 36.5mm 560mm / 505mm / 36.5mm 560mm / 481.5mm / 60mm
Drawers Lined In Fibre Non-Slip Matting? No Yes Yes No
Suggested Wirework Finish Chrome Anthracite Anthracite Natural Oak

Unless you elect an upgrade, our classic cabinet construction method is our staple, go to product. The same attention to detail and craftsmanship, this robust, rigid and fully assembled cabinet construction method uses high quality materials such as Egger furniture board and Blum components and has the following notable specifications.

  • 18mm Egger high density chipboard throughout (32 different decors 19 Plain, 10 Woodgrain, 1 Metallic Effect and 2 Fabric Effect).
  • Cam and dowel joint method (enabling fitter to deconstruct if obstacles encountered).
  • Durable 1mm ABS edging throughout.
  • Classic carcase adjustable leg bearing cabinet legs.
  • Blum Light Grey Antaro full extension soft close drawer boxes (optional upgrade to Glass sides on pan drawers).
  • Nickel Plated shelf supports.
  • Blum integrated soft close hinges (cruciform hinge plates).
  • Oak dovetail drawer boxes on full extension, soft close runners available as an upgrade.
  • Libra H2 concealed wall hanging brackets rated to 150Kg per pair.
  • All units are assembled and wirework and corner optimisers fully fitted and tested (Some cabinets are supplied flat pack due to access issues (i.e. Corner L Base), or fragile (i.e. Fridge Freezer Housing))

The Classic Cabinet Construction is especially well suited to Lay On kitchens, but can also be the basis of a True Handleless kitchen and an In-Frame kitchen.

1mm ABS Matching Edging

Adjustable Load Bearing Cabinet Legs

Antaro Drawer Boxes

Nickel Shelf Supports & Blum Integrated Soft Close Hinges

An upgrade from our classic cabinet construction, this is a deluxe contemporary cabinet with countless opulent features. Select from varying real feel carcass decors encompassing natural effects such as wood and stone or textures such as leather and linen. Ultra modern black hinges and Orion Grey drawer boxes combine to create a contemporary cabinet with the following notable specifications.

  • 18mm Egger & Xylocleaf high density chipboard throughout (32 different decors, 11 Fabric Effect, 5 Stone Effect, 6 Leather Effect and 10 Woodgrain).
  • Cam and dowel joint method (enabling fitter to deconstruct if obstacles encountered).
  • Onyx black Blum integrated soft close hinges with concealed hinge plate and hinge arm and boss cover caps.
  • Recessed nickel shelf support sleeves and pegs.
  • Aesthetically pleasing wide foot load bearing legs.
  • Blum Orion Grey Legrabox soft close drawers with design element options for internal drawers.
  • Bump stomps in rear of fascia.
  • Libra H2 concealed wall hanging brackets rated to 150Kg per pair.
  • All units are assembled and wirework and corner optimisers fully fitted and tested (Some cabinets are supplied flat pack due to access issues (i.e. Corner L Base), or fragile (i.e. Fridge Freezer Housing)).

The Modern Premium Cabinet Construction is especially well suited to True Handleless kitchens, but can be basis of a Lay On kitchen, or an In-Frame kitchen.

Xylocleaf And Egger Tactile Finishes/Onyx Black Hinges

Wide Foot Load Bearing Legs

Drilled Bump Stops (Optional Legrabox Upgrade Shown)

Recessed Nickel Shelf Supports

All the benefits of our classic construction with the luxury of real wood veneer cabinets. Profiled shelving, recessed shelf supports and hinge cover caps add to the opulence. When combined with oak dovetail drawer boxes, each cabinet takes on the appearance of a piece of individually crafted furniture, with the following notable specifications.

  • 19mm Oak Veneered MDF constructions throughout.
  • Coated in durable 20% sheen clear lacquer.
  • Cam and dowel joint method (enabling fitter to deconstruct if obstacles encountered).
  • Blum integrated soft close hinges with concealed hinge plate and hinge arm and boss cover caps.
  • Recessed nickel shelf support sleeves and pegs.
  • Aesthetically pleasing wide foot load bearing legs.
  • Can be specified with upgraded Solid oak dovetail drawers on Blum full extension soft close runners to match, or Antaro and Legrabox drawers.
  • 5mm solid oak front edge to shelves with profile detail.
  • 2mm solid oak edge to all other front edges of cabinet.
  • Libra H2 concealed wall hanging brackets rated to 150Kg per pair.
  • All units are assembled and wirework and corner optimisers fully fitted and tested (Some cabinets are supplied flat pack due to access issues (i.e. Corner L Base), or fragile (i.e. Fridge Freezer Housing)).

Premium Cabinet Construction is especially well suited to In-Frame kitchens, but can also be the basis of a Lay-On kitchen.

Lacquered Oak Veneered MDF Carcass

Wide Foot Load Bearing Legs

Optional Upgrade To Soft Close Oak Dovetailed Drawers

Concealed Hinge Plate And Boss/Arm Covers

Sitting in between the Classic and the Modern Premium, the Modern Premium Lite is a cabinet based on the Classic Cabinet decors, but with the features of the Modern Premium cabinet. In effect, we are offering the less expensive furniture board decors and a small uplift to cover the additional features of the Modern Premium Cabinet to achieve a cost effective contemporary cabinet. The Modern Premium Lite cabinet has the following notable specifications.

  • 18mm Egger high density chipboard throughout (32 different decors 19 Plain, 10 Woodgrain, 1 Metallic Effect and 2 Fabric Effect).
  • Cam and dowel joint method (enabling fitter to deconstruct if obstacles encountered).
  • Onyx black Blum integrated soft close hinges with concealed hinge plate and hinge arm and boss cover caps.
  • Recessed nickel shelf support sleeves and pegs.
  • Aesthetically pleasing wide foot load bearing legs.
  • Blum Orion Grey Legrabox soft close drawers with design element options for internal drawers.
  • Bump stomps in rear of fascia.
  • Libra H2 concealed wall hanging brackets rated to 150Kg per pair.
  • All units are assembled and wirework and corner optimisers fully fitted and tested (Some cabinets are supplied flat pack due to access issues (i.e. Corner L Base), or fragile (i.e. Fridge Freezer Housing)).

Please see below all the different draw ranges available:

We are in the unusual position of holding a direct account with Blum UK having been a customer from our inception.

The reasons for choosing Blum are simple, not only are we able to access a comprehensive product line from the market leader, we are also at the cutting edge of innovation and the first to learn of the latest solutions.

We have been able to grow in size and reputation by maintaining a close working relationship with Blum this is of course backed up by a lifetime guarantee for all Blum parts.

Unless you elect to upgrade, the Blum Antaro drawer boxes is our staple, go to a product. The Antaro drawer has a clean rectangular design and can be combined with a square gallery rail or with an optional glass design element to produce closed drawer boxes. All the components have been colour-coordinated in Light Grey, underlining the minimalist design.

Unless specified differently, standard base and tall unit drawers are 450mm deep and operate in our standard cabinet dimensions (560mm deep carcass, 481.5 internal depth, 18.5mm solid back, 60mm void).

We are able to access 400mm deep and 270mm deep Antaro drawers if the respective units are shallow, and carry stock of “N” Height (79.5mm), “M” Height (98.5mm) and “D” Height (224mm) drawer sides together with internal drawer fronts. Runners are graded to 30Kg and 50Kg load capacities.

“M” Height Internal Drawer Above Another

“D” Height Drawer With Optional Glass Side Inserts

“D” Height Internal Drawer With Glass Side Inserts

Our premium drawer box offering that can be accessed when upgrading the cabinet construction to Modern Premium Lite, Modern Premium or Premium.

The Legrabox drawer has an impressively slim side (12.8mm), straight lines and a high quality of motion, finished in stylish Orion Grey (anthracite).

The drawer bases are lined with a fibre non-slip matting, and internal drawers come in three different options: Pure with gallery fascia, Pure with Design Element fascia, and Free with Design Element sides and fascia).

“M” Height Legrabox Drawer (106mm High)

“C” Height Legrabox Drawer (193mm High)

“F” Height Legrabox Drawer (257mm High)

Legrabox Pure is the name given to internal drawers in the Legrabox range. It’s just a way to describe closed drawer sides with either Gallery Fascia or Design Element Fascia.

Unless specified differently, standard base and tall unit drawers are 500mm deep and operate in revised cabinet dimensions (560mm deep carcass, 505mm internal depth, 18.5mm solid back, 36.5mm void).

We are able to access 400mm deep and 270mm deep Legrabox drawers if the respective units are shallow, and carry stock of Height (80mm), Height (106mm), Height (193mm) and Height (257mm) drawer sides together with a larger range of internal drawer front options. Runners are graded to 40Kg and 70Kg load capacities.

Pure (Solid Sides) With Gallery Fascia (Orion Grey Finish As Standard)

Pure With Design Element Fascia (Clear Glass, Natural Oak Or Natural Walnut)

Legrabox Free is the name given to internal drawers in the Legrabox range. It’s just a way to describe drawer sides and drawer fascias with Design Elements added.

Space Tower tall storage and internal drawer base units exist which include glass sided and glass fascia internal drawers in both Orion Grey and Stainless Steel finish.

Stainless Steel Legrabox Free With Clear Glass Design Elements

Stainless Steel Legrabox Free With Solid Oak Design Elements

Stainless Steel Legrabox Free With Solid Walnut Design Elements

13mm Solid Oak Drawer Boxes with Dovetail Joints available on all cabinet constructions subject to a surcharge, finished in 20% sheen clear lacquer.

Available in 90mm and 180mm heights as standard with bespoke heights available. Runners are graded to 40Kg and 60Kg load capacities.

Unless specified differently, standard base and tall unit drawers are 450mm deep and operate in our standard cabinet dimensions (560mm deep carcass, 481.5 internal depth, 18.5mm solid back, 60mm void). We are able to access 400mm deep and 270mm deep Movento runners if the respective units are shallow.

Solid Oak With Dovetail Joints On Show

Bespoke Heights/ Widths/ Optional Inserts

Extra High Bespoke Baking Tray Storage

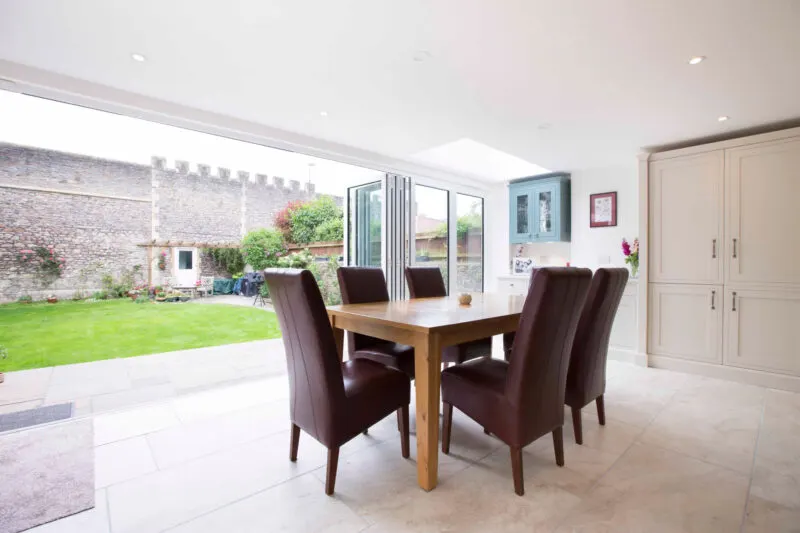

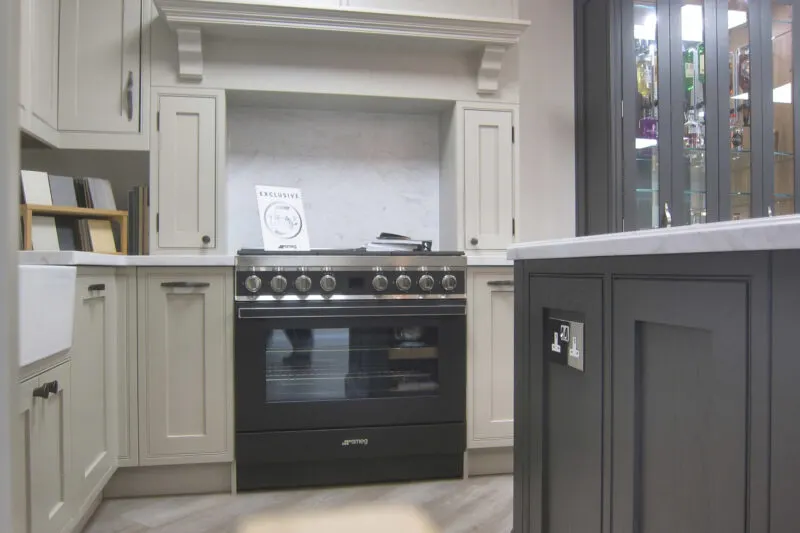

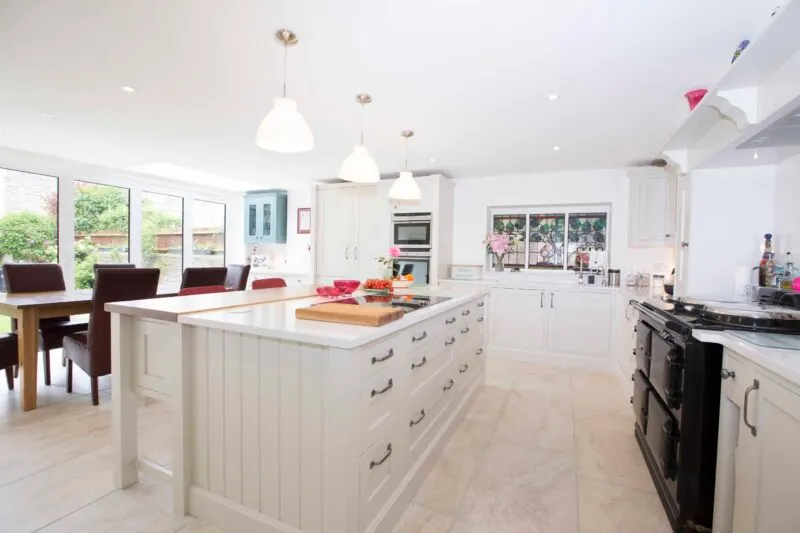

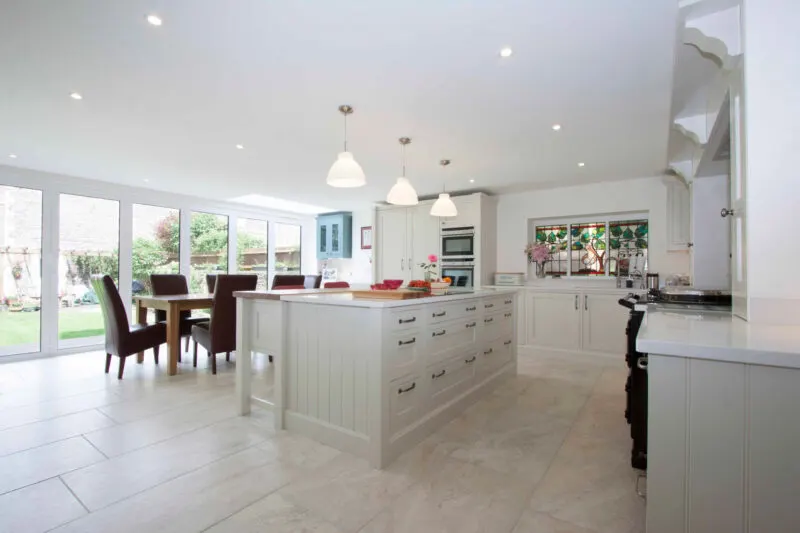

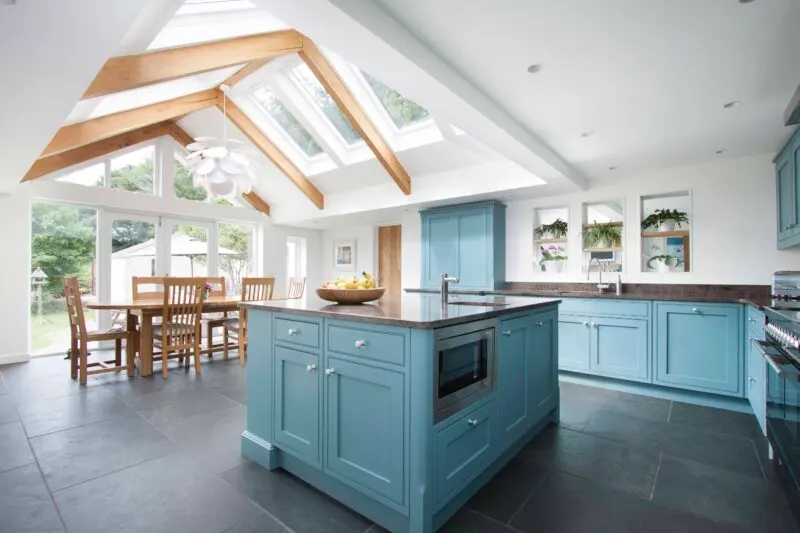

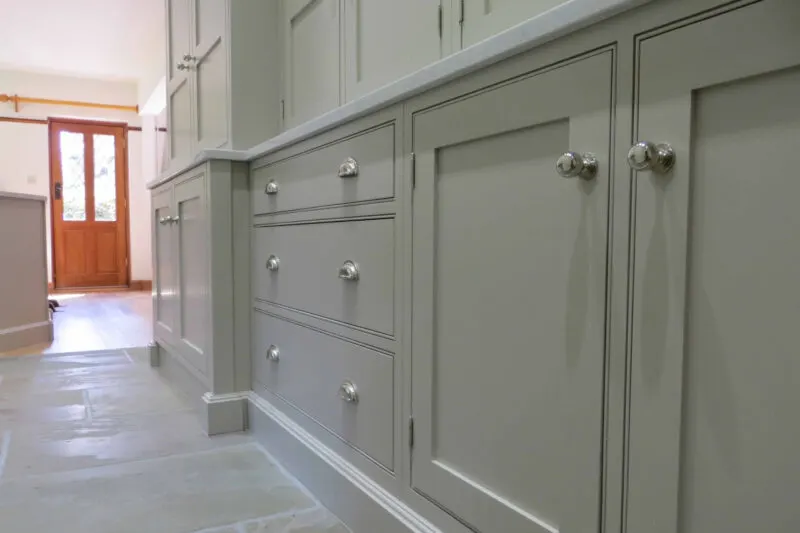

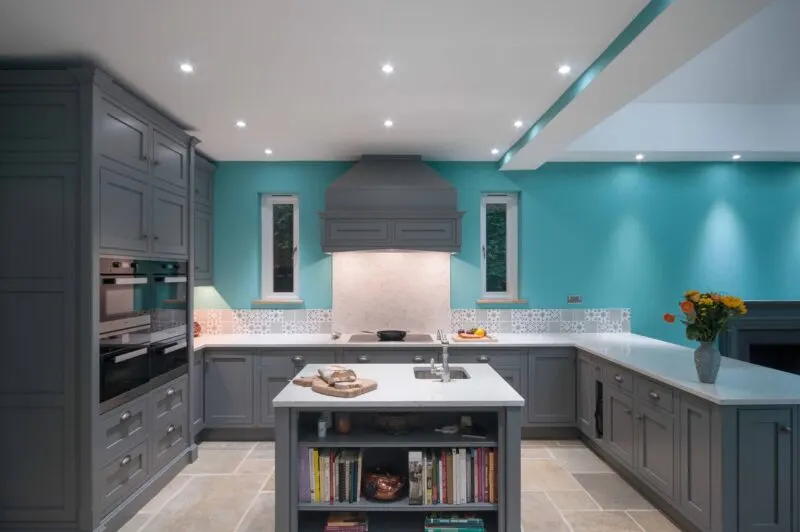

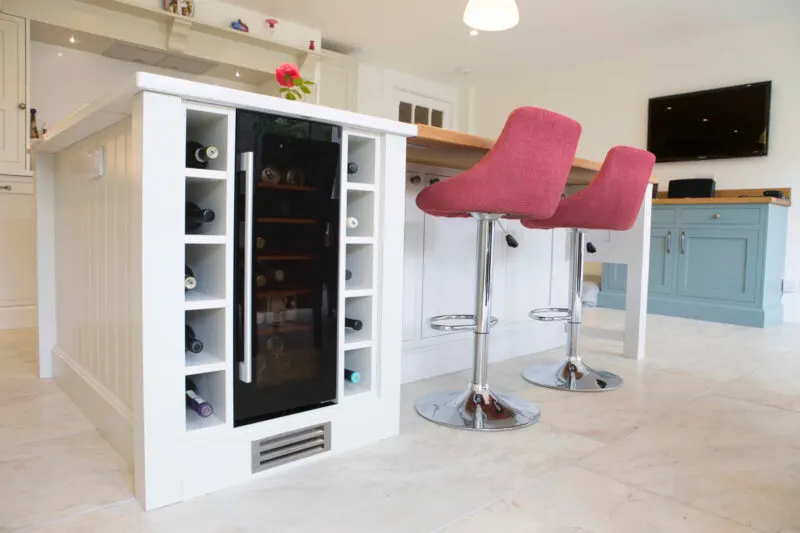

Photo Gallery

Browse our gallery for this range. Click any photo to expand.
